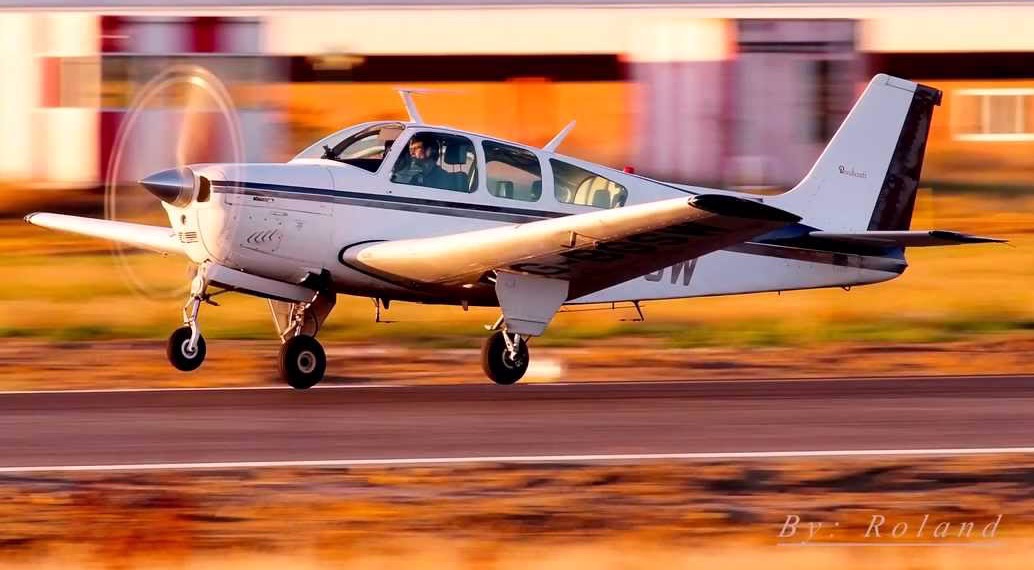

F33 BONANZA

PRODUCTION YEAR:  1970   SERIAL NUMBERS:  CD-1235 through CD-1254   ENGINE:  Continental IO-470K (225 hp)

SPECIFICATIONS

  1. Wingspan:     32 ft 10 in
  2. Length:     26ft 8 in
  3. Height:      8ft 3 in
  4. Maximum TO Wt.: 3,050 lbs
  5. Useful load:     1,165 lbs

PERFORMANCE (ISA)


Max cruise speed     185 mph (160kt)
Max range (no reserve)      880 miles
Fuel capacity (standard)     50 gallons

DISTINGUISHING FEATURES

Conventional ("straight") tail, "Speed sweep" windscreen (no center post), Large third window, Vertical stabilizer dorsal fin, Optional long range fuel tanks (80 gal. total), Single, throw-over control yoke, Vernier engine and mixture controls, Electric auxiliary fuel pump, Gear handle on right, flap on left, No cowl flaps, Landing light on nose cowling

COMMON OPTIONS/ MODIFICATIONS

Engine upgrades, Tip tanks, Improved cabin ventilation system, Instrument panel and/or avionics upgrades, Interior upgrades, Dual control yoke
