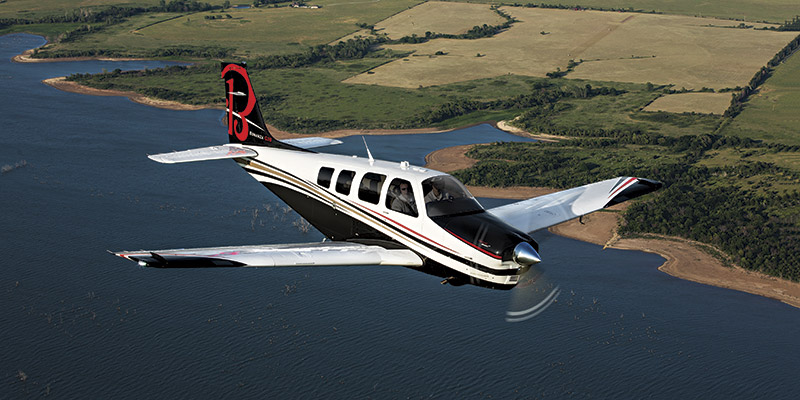

Model G36 Beechcraft Bonanza
PRODUCTION YEAR: 2005 - Current SERIAL NUMBERS: E-3630, E-3636 & After ENGINE: Continental IO-550-B (300 hp) TBO: 1700
SPECIFICATIONS
- Wingspan: 33 ft 6 in
- Length: 27 ft 6 in
- Height: 8 ft 7 in
- Maximum TO weight: 3,650 lbs
- Useful load: 1,403 lbs
DISTINGUISHING FEATURES
Four side windows, Large, two-piece utility door on right aft fuselage, Six seats (aft two seats weight restricted), Garmin G1000 "glass cockpit", Dual flight controls, Quadrant-style engine controls, Small "turbine-style" engine gauges, Gear handle on the left, flap on the right, Two-speed electric auxiliary fuel pump, Leading edge vortex generators ahead of ailerons
COMMON OPTIONS/ MODIFICATIONS
Engine upgrades, Tip tanks
PERFORMANCE (ISA)
Max Speed: 184 kts, Cruise Speed 169 kts, Stall Speed 59 kts, Fuel Capacity 74 gal, Service Ceiling 18,500 Ft, Rate Of Climb 1,210 fps, TO (over 50 ft obstacle) 1,913 ft, TO Ground Roll 971 ft, Landing (over 50 ft obstacle) 1,473 ft, Landing Ground Roll 913 ft, Range 720 nm (74 gal useable)
