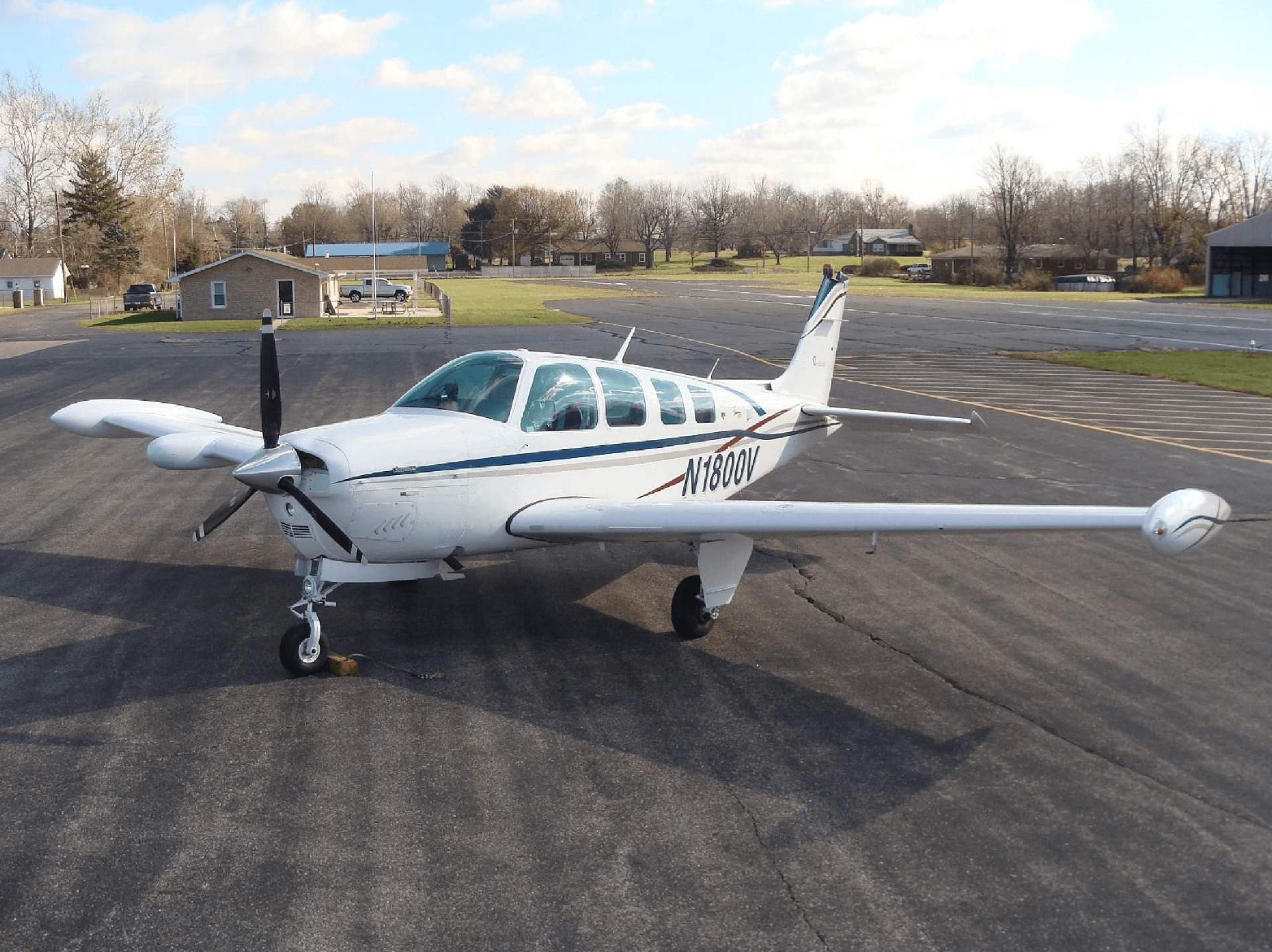

1981 Beechcraft A36 Bonanza N1800V - Listing Pending
IO-550 - NDH - Exceptional Maintenance -
Summary
This 1981 Beechcraft A36 Bonanza won the EAA Outstanding Beechcraft Single Engine award at the Oshkosh Airventure in 2023 when it was purchase by its current owner and it's perhaps the nicest C33A we've ever seen. The airplane recently underwent a complete top overhaul with new cylinders to comply with an AD against the ECI cylinders that were installed on the engine. The airplane has been flown 700 hours since 2018 and it's being offered for sale because the owner has upgraded to an A36 Bonanza.
Click On The Photos Below to Enlarge The Slideshow
Airframe
- Serial Number E-1858
- AFTT 3,800
- Based KOSU
- Seats Six (6) Seats
- Damage History No Damage History
- Hangared Always Since New
- Logbooks Complete Original
- Annual Due Unknown
- IFR Checks Due Unknown
- ELT Battery Due Unknown
- W&B Unknown
Avionics
- Audio Panel Garmin GMA 345
- Autopilot Garmin GFC500 A/P w/ GPSS Steering, Alt Preselect
- Connectivity FlightStream 210
- Engine Management JPI EDM 900
- EFIS 1 Garmin G5 Attitude Indicator
- EFIS Garmin G5 HSI
- GPS #1 Garmin GTN 650xi IFR WAAS GPS/Nav/Comm
- NavComm Bendix King KX155A w/GS
- Transponder L3 NGT-9000 ADSB I/O
- Storm Detection L3 BFG WX-950 StormScope
- Accessories Avionics Master, Guardian CO Monitor
Standard Model Data - 1981 A36
- Dimensions Height: 8'7", Wing Span: 33'6", Length: 27'6", Cabin Height: 4'2", Cabin Width: 3'6", Cabin Length: 10'11", Cabin Door Width: 37", Cabin Door Height: 36", Baggage Door Dimensions: 45" x 35". Main Baggage Space: 40 cu ft, Aft Baggage Space: 40 cu ft.
- Operating Weights Gross Weight: 3,600 lbs, Empty Weight: 1,620 lbs, Useful Load: 1,980 lbs, Standard Useable Fuel Capacity: 74 Gals, Payload w/ Standard Full Fuel: 1,536 lbs, Extended Useable Fuel Capacity 114 Gals, Payload w/ Full Useable Extended Fuel: 1,356 lbs, Main Baggage Capacity: 400, Aft Baggage Capacity: 70 lbs.
- Speeds Max Speed Vne: 204 KIAS, Max Structural Cruise Vno: 166 KIAS, Maneuvering Speed Va: 140 KIAS, Flaps Approach / Max Extension Speeds Vfe: 123 KIAS, Landing Gear Extension Vlg: 153 KIAS, Stall Speed Vs: 62 KIAS, Stall Speed (Dirty) Vso: 56 KIAS, Best Rate Of Climb Vy: 96 KIAS, Best Angle Of Climb Vx: 78 KIAS, Cruise Climb Speed: 109 KIAS, Best Glide Speed: 110 KIAS.
- Performance T/O Ground Roll: 1,140 ft, T/O Distance Over 50 Ft Obstacle: 2,040 ft, Landing Distance: 840 ft, Landing Distance Over 50 ft Obstacle: 1,450 ft, Initial Rate Of Climb: 1,030 fpm, Absolute Ceiling: 16,600 ft, Service Ceiling: 16,600 ft, Minimum Range: 861 nm
Engine & Propeller
- Engine Continental IO-550-B S/N 578444, 300 HP, 1,700 TBO, 980 SMOH By Ram, 10 STOH with new Millennium cylinders in 2026. Compressions 79/78/79/79/78/76 over 80, Serviced w/ AeroShell 15W50.
- Propeller McCauley Model D3A32C409, 3-Blade Propeller, Hub S/N 901935, 1,913.3 TT, 687.6 SPOH in April 2018.
Airframe Enhancements / Modifications
- Exterior Paint New paint in 2022 by Arizona Aeropainting LLC, JetGlo CM0S70535 Matterhorn White, AcryGlo H06214 Daytona Blue, H10510 Platinum, and H10683 Gray,
- Interior Paint Medium tan leather rated 9 of 10. New windows in 2021.
- Other New Windows in 2022, New Left Eagle Fuel Cell in 2021, New Right Eagle Fuel Cell in 2018, 15 Gallon Tip Tanks, LED Lighting throughout Except Tips and Strobes,
Recent Maintenance
- Pending
Standard Model Data - 1981 A36
- Specifications Wing Area: 181 sq ft, Wing Loading: 19.9 lbs/sf, Power Loading: 12.6 hp/sq ft, Standard Fuel (Total): 80 Gal, Standard Fuel (Useable): 74 Gal, Extended Fuel: 120 Gal, Extended Fuel (Useable): 114 Gal, Oil Capacity (Each Engine): 12 quarts.
Ohio State University Airport Airport - KOSU
Columbus, Ohio USA
