1977 Beechcraft A36 Bonanza N71KW - $260,000 OBO
Recent New IO-550, Scimitar Prop, and Avionics
Summary
This 1977 Beechcraft A36 Bonanza was recently upgraded with a factory new Continental IO-550 engine, factory new Hartzell Scimitar prop, and new Garmin avionics including a GFC500 A/P. The airplane is beautifully equipped and with its current specifications, can provide a new owner with a cost-effective exit strategy should the owner opt to upgrade airplanes within 5 years or 500 hours. This ADS-B I/O (in/out) Bonanza is fully equipped and sure to serve the most discerning owner-pilot well. That said, we believe the airplane needs an interior, window upgrade, and a thorough detail in order to match the current quality of the paint, engine, prop and avionics. If you're looking for a capable A36 Bonanza with exceptional upgrades, N71KW is the perfect airplane equally suited for business and family use and is sure to bring a new owner years of safe and reliable transportation.

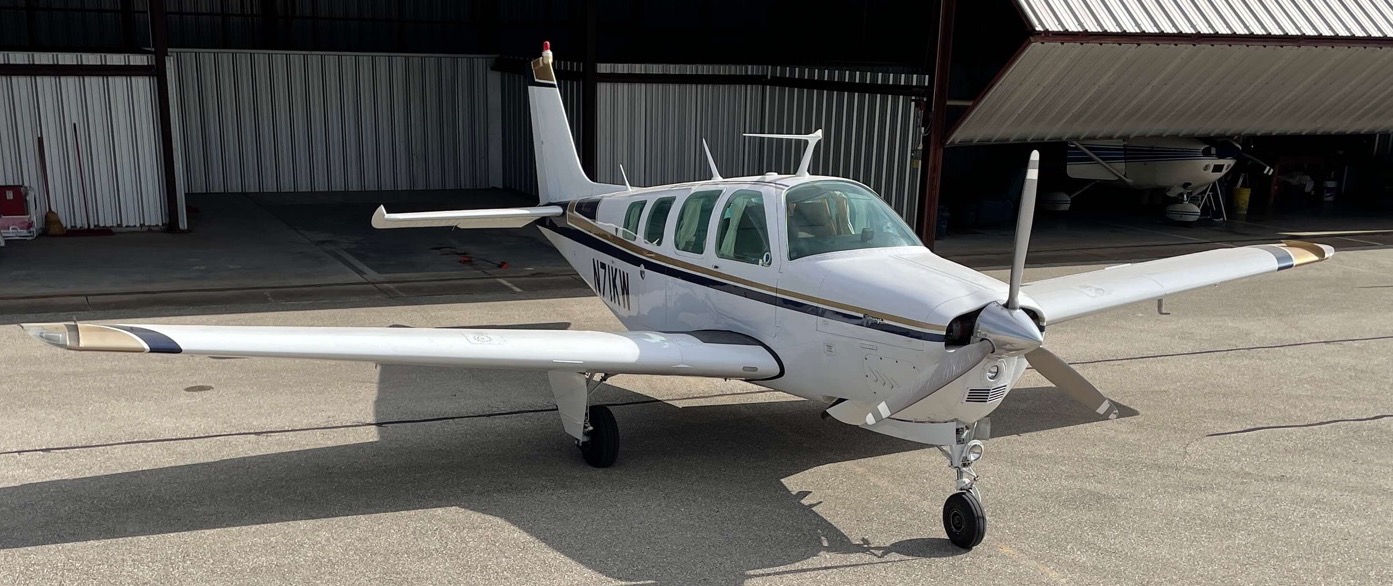

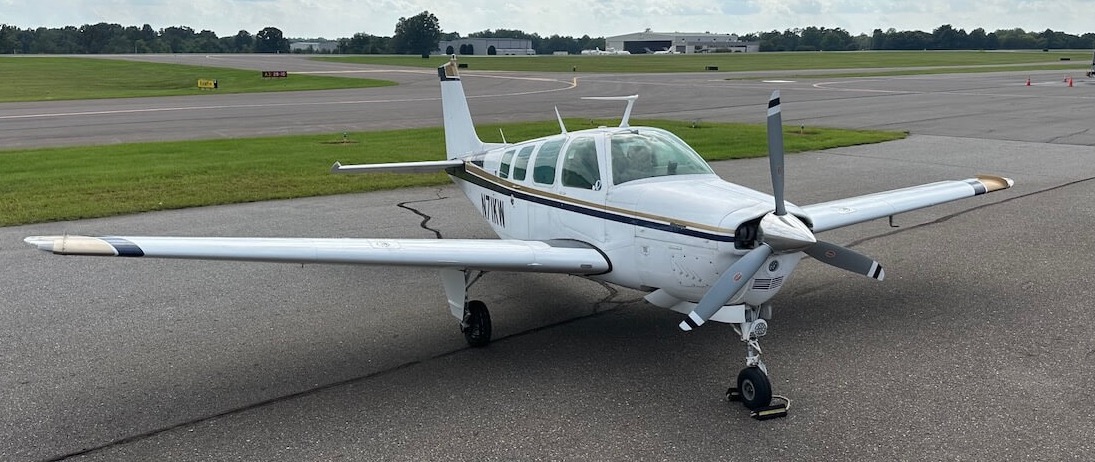

Click On The Photos Below to Enlarge The Slideshow
Airframe
- Serial Number E-1144
- AFTT 3,765.9
- Based KSVH
- Seats Six (6) Seats
- Damage History No Damage History
- Hangared Tied Down KSVH
- Complete Original Logs Yes
- Annual Due Due Now
- IFR Checks Due Due Now
- ELT Battery Due Due Now
- W&B Information Pending
Avionics
- ADS-B Garmin GTX 345 ADSB I/O Transponder
- Audio Panel Garmin GMA 350c
- Autopilot Garmin GFC500 Digital Autopilot A/P
- Engine Management JPI EDM 700
- EFIS #1 Garmin GI275 Attitude Indicator
- EFIS #2 Garmin GI275 Horizontal Situation Indicator
- ELT Ameri-King AK-450
- Fuel Flow Shadin Microflo‑L 912041T‑38‑D
- GPS #1 Garmin GTN650 IFR WAAS GPS/Nav/Comm
- Intercom #1 Garmin GMA 350c 6-Place Stereo
- Nav/Comm Garmin GNC 215 Nav/Comm
- Transponder Garmin GTX 345 ADSB I/O Transponder
- Accessories Avionics Master, 6 Place Intercom
Standard Model Data - A36 Bonanza
- Dimensions Height: 8'7", Wing Span: 33'6", Length: 27'6", Cabin Height: 4'2", Cabin Width: 3'6", Cabin Length: 10'11", Cabin Door Width: 37", Cabin Door Height: 36", Baggage Door Dimensions: 45" x 35". Total Baggage Space: 37 cu ft.
- Operating Weights Gross Weight: 3,600 lbs, Empty Weight: 1,620 lbs, Useful Load: 1,980 lbs, Standard Useable Fuel Capacity: 74 Gals, Payload w/ Standard Full Fuel: 1,536 lbs, Extended Useable Fuel Capacity 114 Gals, Payload w/ Full Useable Extended Fuel: 1,356 lbs, Total Baggage Capacity: 400, Aft Baggage Capacity: 70 lbs
- Speeds Max Speed Vne: 204 KIAS, Max Structural Cruise Vno: 166 KIAS, Maneuvering Speed Va: 140 KIAS, Flaps Approach / Max Extension Speeds Vfe: 123 KIAS, Landing Gear Extension Vlg: 153 KIAS, Stall Speed Vs: 62 KIAS, Stall Speed (Dirty) Vso: 56 KIAS, Best Rate Of Climb Vy: 96 KIAS, Best Angle Of Climb Vx: 78 KIAS, Cruise Climb Speed: 109 KIAS, Best Glide Speed: 110 KIAS
- Performance T/O Ground Roll: 1,140 ft, T/O Distance Over 50 Ft Obstacle: 2,040 ft, Landing Distance: 840 ft, Landing Distance Over 50 ft Obstacle: 1,450 ft, Initial Rate Of Climb: 1,030 fpm, Absolute Ceiling: 16,600 ft, Service Ceiling: 16,600 ft, Minimum Range: 861 nm
- Specifications
- Wing Area: 181 sq ft, Wing Loading: 19.9 lbs/sf, Power Loading: 12.6 hp/sq ft, Standard Fuel (Total): 80 Gal, Standard Fuel (Useable): 74 Gal, Extended Fuel: 120 Gal, Extended Fuel (Useable): 114 Gal, Oil Capacity (Each Engine): 12 quarts.
Engine & Propeller
- Engine Continental Aerospace Technologies IO-550-B82B S/N 1046044, 300 HP, 1,700 TBO, 126.45 SNEW in January 2024. Recent cylinder compressions: 1-74/80, 2-75/80, 3-73/80, 4-72/80, 5-70/80, 6-72/80. Serviced w/ Phillips 20W-50 XC engine oil.
- Propeller Hartzell Model PHC-(C,L)3YF-1RF, 3-Blade Propeller, Hub S/N QG2421B, 126.45 SNEW in January 2024.
Airframe Enhancements / Modifications
- Exterior Paint Refinished in 1995 with P & L Jet Glo
Matterhorn White #570-535 Base Color and P & L AcryGlo Concorde Blue #HT10717 and P&L AcryGlo Antique Gold #HS10512 trim colors. Rated 7 of 10.
- Interior Refurbished in 1994 with light tan fabric and vinyl trim tan. Rated 5 of 10.
- Other 6 Place Intercom, 100 Amp Alternator, Aileron Trim, Avionics Master Switch, Bruce Cowling Plugs, Cabin Door Courtesy Light, D'Shannon Engine Baffles, D'Shannon Engine Compartment Air Flow Panels, D'Shannon High Performance FreeFlow Exhaust, Dual Yoke, Eagle Fuel Drains, Electric Trim, Executive Writing Table, Hobbs Meter, Kennon Window Shades, LEMO Headset Jacks, Medeco Security Locks, Music Input, New McFarlane Engine Controls, Polished Spinner, Precise Flight Pulselite System, Rosen Visors, Scimitar Prop, Stainless Gill Plate Fasteners, Static Wicks, Tuned Injectors, Vertical Card Compass, Whelen LED Beacon, Whelen LED Landing & Taxi Lights, Whelen LED Wingtip Recognition Lights, Whelen Orion LED Position/Strobe Lights

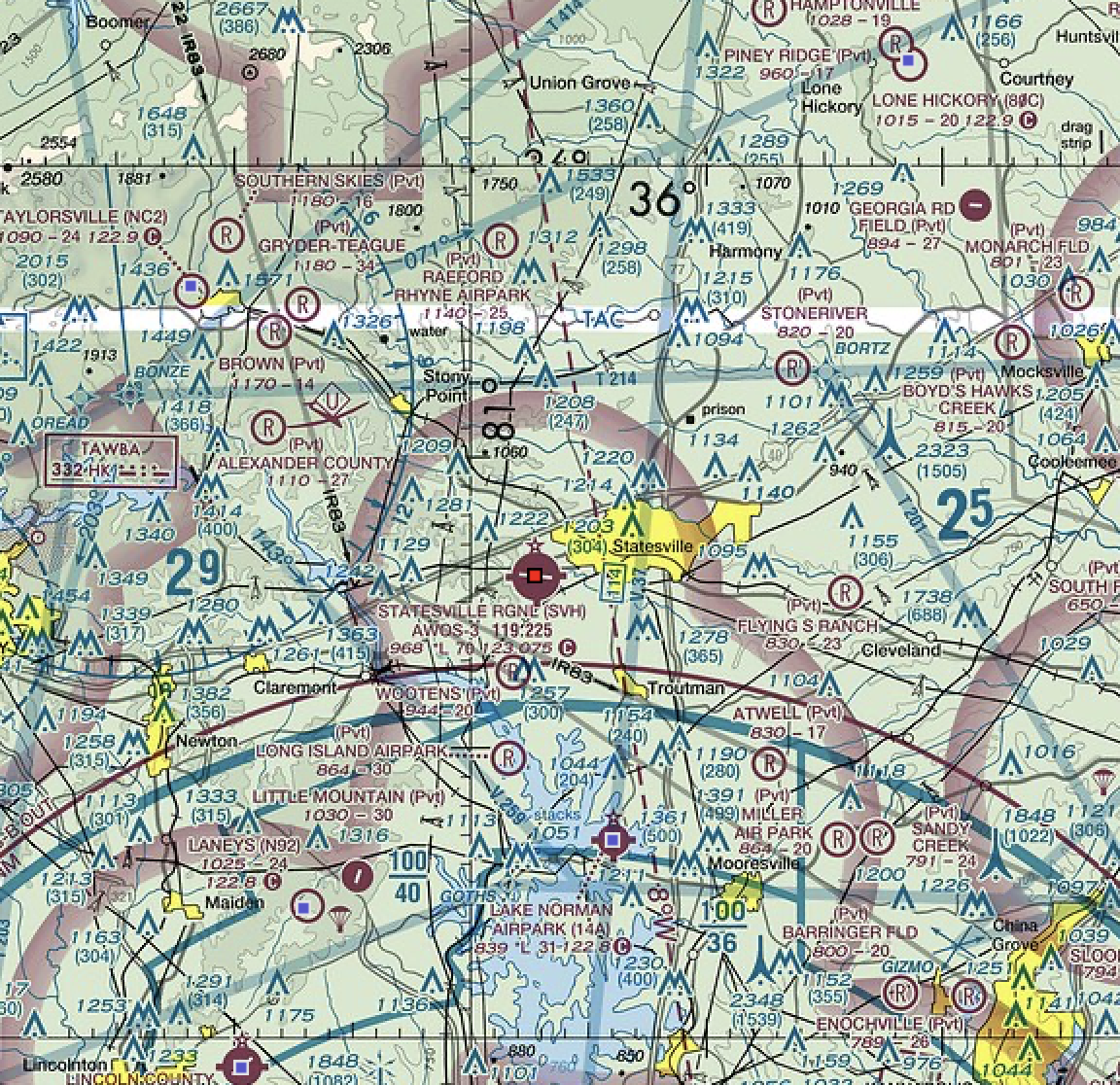

Aircraft Location
Statesville Regional Airport - KSVH
Statesville, NC USA
