1977 Beechcraft B58 Baron - Price Pending
Recent Engines - Beautiful P&I - NDH - Low Time
Summary

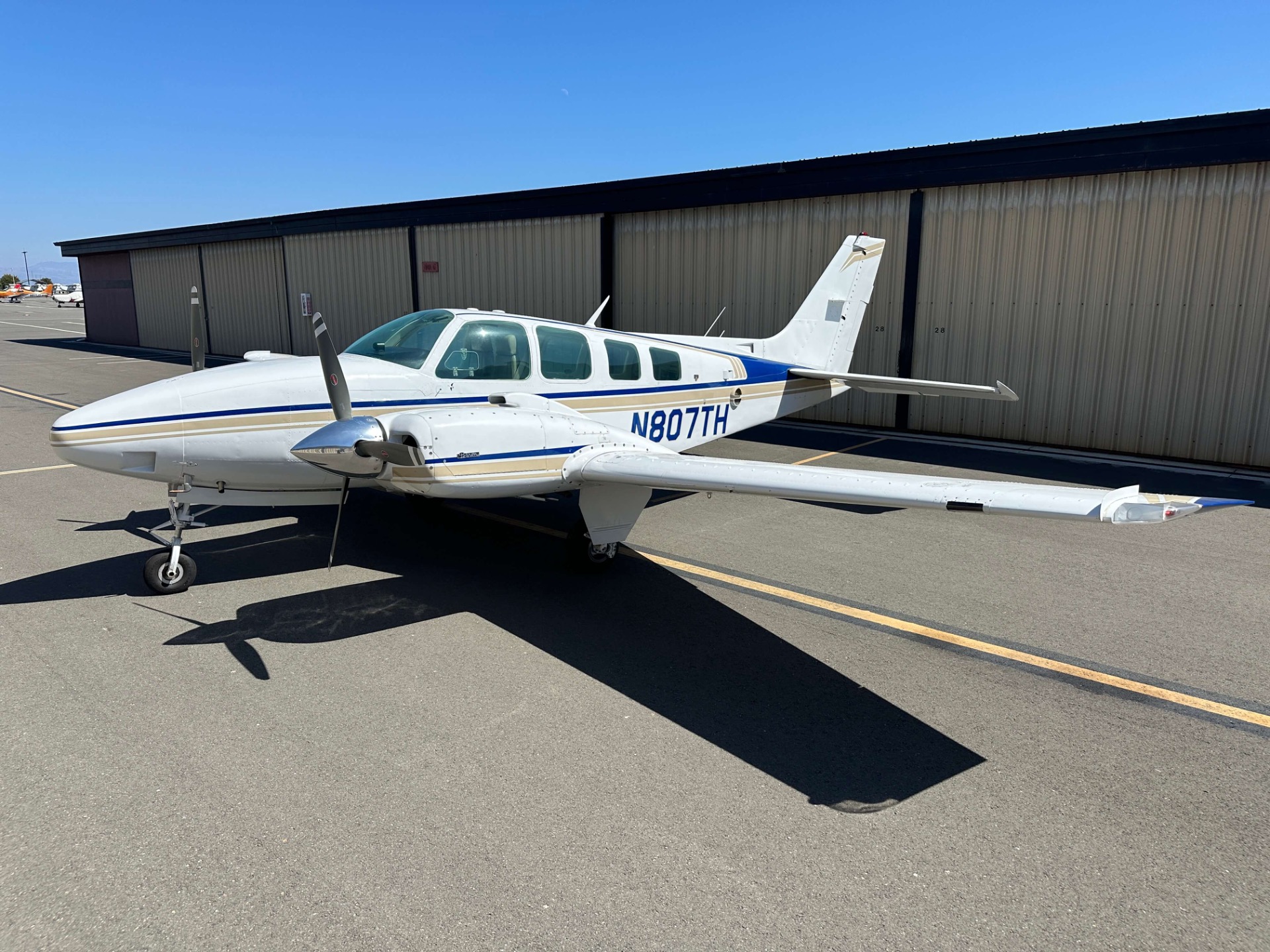

This is an exceptionally beautiful and pampered IO-520 powered Beechcraft 58 Baron that has had the same owner for the past 27 years. The airplane has a flawless damage history and is a perfect candidate for a complete digital avionics upgrade. And with over 820 hours until mid-time, the airplane fits our "exit strategy" profile beautifully. If you're looking for a "loved" B58 that you can customize from an avionics perspective exactly the way you want, and yet maintain the airplane's value, N807TH is the perfect fit.
Click On The Photos Below to Enlarge The Slideshow
Airframe
- Serial Number TH-807
- AFTT 3,833
- Based KPAO
- Seats Six (6) Seats
- Damage History None
- Hangared Always
- Complete Original Logs Yes
- Annual Due 06/30/26
- IFR Checks Due Current but Unknown
- ELT Battery Due XX/XX/XX
- W&B 5,400 GW, 3768.3 EW, 78.73" CG, 1,631.7 Useful Load
Avionics
- ADF King KR85
- ADS-B Garmin GTX 345 ADS-B I/O Transponder
- Audio Panel King KMA20 w/ Marker Beacon Receiver
- Autopilot King KFC 200 w/ Pitch Trim
- DME King KN65
- Engine Management JPI EDM 760
- GPS Bendix King KLN 94 IFR GPS
- Flight Director Bendix King KI-255 Indicator
- HSI Bendix King KCS 55A Slaved Compass System
- Intercom PSE PM3000 6-Place
- NavComm 1 King KX175B NavComm
- NavComm 2 King KX175B NavComm
- Transponder Garmin GTX345 ADS-B I/O
- Wx Radar Bendix RDR-160
Standard Model Data - 58 Baron
- Dimensions Height: 9/6, Wing Span: 37//10, Length: 29/10, Cabin Height: 4' 2", Cabin Width: 3' 6", Cabin Length: 12/7, Cabin Door Width: 37, Cabin Door Height: 36, Baggage Door Dimensions: 0
- Operating Weights Gross Weight: 5,400 lbs, Empty Weight: 3,235 lbs, Useful Load: 2,165 lbs, Standard Fuel Capacity: 136 Gal Useable, Payload w/ Standard Full Fuel: 1,349 lbs, Extended Fuel Capacity 166 Gal Useable, Payload w/ Extended Full Fuel: 1,169 lbs
- Wing / Power Loading Wing Area: 199.2 sq ft, Wing Loading: 27.1 lb/sq ft, Power Loading: 9.47 hp/sq ft
- Fuel / Oil Capacity Standard Tanks: 142 gal, Standard Useable: 136 gal, Extended Range Tanks: 172 gal, Extended Range Tanks Useable: 166 gal, Oil Capacity, Each Engine: 12 qts
- Baggage Main Baggage Area Capacity 400 lbs, Main Baggage Area Space 35 cuft, Nose Baggage Capacity 300 lbs, Nose Baggage Space 18 cuft, Aft Baggage Capacity 120 lbs, Aft Baggage Space 10 cuft
- Speeds Max Speed Vne: 223 Kts, Max Structural Cruise Vno: 195 Kts, Maneuvering Speed Va: 156 Kts, Minimum Control Vmc: 81 Kts, Flaps Approach / Max Extension Speeds Vfe: 152 Kts, Landing Gear Extension Vlg: 152 Kts, Landing Gear Operation Vlo: 152 Kts, Stall Speed Vs: 84 Kts, Stall Speed (Dirty) Vso: 74 Kts, Best Rate Of Climb Vy: 104 Kts, Best Angle Vx: 86 Kts, Best Rate Of Climb (Single Engine) Vyse: 100 Kts, Best Angle of Climb (Single Engine) Vxse: 96 Kts, Single Engine Operation Vsse: 81 Kts, Cruise Climb: 139 Kts
Engine & Propeller
- Engine Left Engine - Continental IO-520-CB, S/N 289951-R, 285 HP, 1,700 TBO, 34.5 SMOH in June 2022 by Mena Aircraft Engines in Mena, AR . Compressions 78/78/78/78/77/78 Over 80. Right Engine - Continental IO-520-CB, S/N 289951-R, 285 HP, 1,700 TBO, 34.5 SMOH in June 2022 by Mena Aircraft Engines in Mena, AR . Compressions 78/78/76/78/77/78 Over 80.
- Propeller Left - Hartzell Model PHC-J3YF-2UF 3-Blade Propellers, Hub S/N ED5104B 868.5 SPOH, Right - Hartzell Model PHC-J3YF-2UF 3-Blade Propellers, Hub S/N ED5108B, 868.5 SPOH.
Airframe Enhancements / Modifications
- Paint Matterhorn White w/ Blue and Light Tan Accent Stripes, Rated 9/10
- Interior Original Aviation Design Leather Interior, Leather Sidewalls, Tan Leather Seats, Rated 9/10
- Other Hartzell 3-Blade Top Props,, 6-Place Intercom, 100 Amp Alternators, Aileron Trim, Air Conditioning, Unfeathering Accumulators, Rosen Sun Visors, Prop Sync,
Electric Pitch Trim, 166 Gallons Fuel, Strobes, Heated Fuel Vents and Pitot Tube, Cleveland Wheels and Brakes, Bruce's Custom Cover. Gust Lock, Avionics Master Switch, Hobbs Meter, Standby AI, LEMO Connectors, Cargo Straps, Dual GS Indicators, Electric Trim, Tanis Engine Heater, Extended Baggage, GAMIs, Gear Mirrors, Ground Power Plug, Headrests, LED Landing & Taxi Lights, Music Input, Oil Quick Drains, Polished Spinners, Shoulder Harnesses, Courtesy Lights
Standard Performance - 58 Baron
- Performance Normal Rate Of Climb: 1,660 fpm, Best SE Rate Of Climb: 390 fpm, Takeoff Roll: 1,336 ft, Takeoff Roll (Over 50 ft Obstacle): 2,101 fpm, Landing Roll: 1,439 ft, Landing Roll (Over 50 ft Obstacle): 2,498 ft, Service Ceiling: 18,600 ft, Service Ceiling SE: 7,000 ft, Range: 1,013 NM, Extended Range: 1,276 NM
Palo Alto Airport- KPAO
Palo Alto, California, USA
